High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine

Name: High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine
Brand: MOOGE
Price: 70 USD

Wholesale High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine from china suppliers

Model Number : MT

Capacity : Varies By Model, Typically 500-5000 Kg/hour

Packaging Details : Export Standard Packaging / Wooden Case / Film Wrapping

Payment Terms : L/C, D/P, T/T

Material : PET

brand name : MOOGE

Supply Ability : 1 SET PER 65-85 days

machinery test report : Provided

Brand Name : MOOGE

MOQ : 1 Set

Delivery Time : 75-80 days

warranty : 1 Year

Price : USD 70,000 – 80,000 / Set (depending On Capacity & Configuration)

After-sales Service Provided : Engineers

Certification : CE

Place of Origin : China

Final product : Clean Plastic Flakes

Contact Now

Product Overview

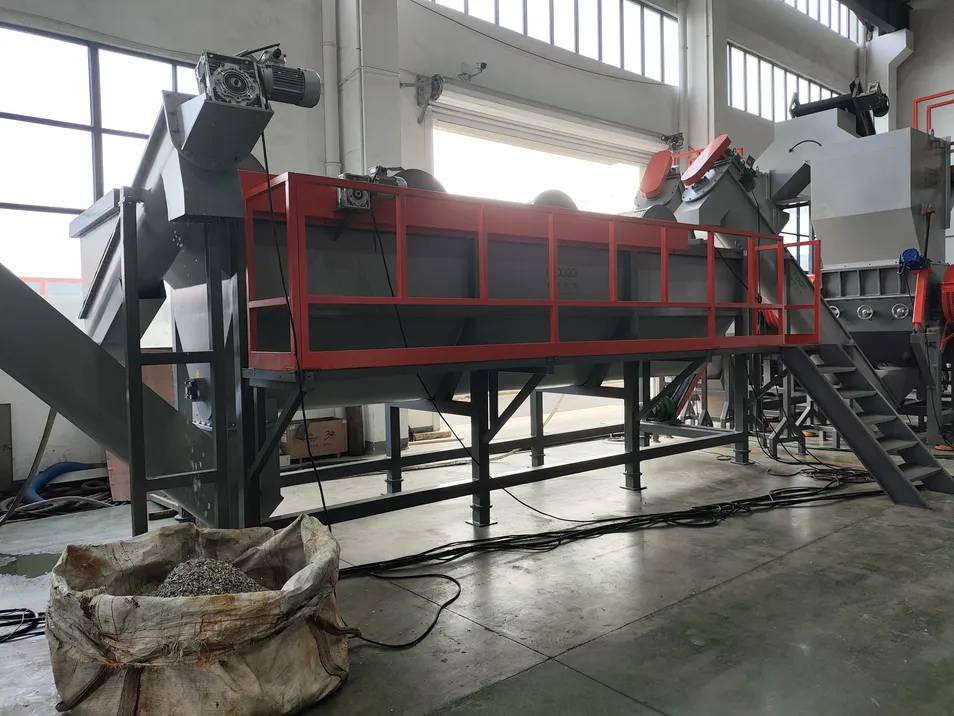

PET Bottle Washing Recycling Line

PET Bottle Washing Line is a complete solution for recycling waste PET bottles into clean PET flakes. It is widely used for processing post-consumer PET bottles collected from municipal waste, recycling stations and beverage industries.

The production process includes sorting, label removing, crushing, washing, separating, drying and packing. Through advanced washing technology, the system can efficiently remove contaminants and produce high-quality PET flakes suitable for further recycling applications.

Our PET recycling plants are available with different capacities, such as 300kg/h, 500kg/h, 1000kg/h and more. The complete line can be customized according to customer's raw material condition and investment requirements.

Specification

Applications

The recycled PET flakes produced by Mooge PET Bottle Washing Recycling Line can be widely used in various industries, including polyester fiber manufacturing, PET strap production, PET sheet production, plastic packaging and other recycled PET products.

By converting waste PET bottles into high-quality recycled flakes, this system helps reduce plastic waste, save resources and create additional value for recycling businesses. It is an ideal solution for recycling companies, waste management plants and plastic manufacturers looking for sustainable plastic recycling solutions.

Technical Specifications

Model	Capacity	Installed Power	Steam Use	Water Supply	Manpower	Area Required
MT-500	500 kg/hr	190 KW	Optional	4-5 m3/hr	4-6 Person	6055 m
MT-1000	1000 kg/hr	260 KW	Optional	5-7 m3/hr	8-10 Person	8085 m
MT-2000	2000 kg/hr	400 KW	Suggest Use	10-15 m3/hr	10-12 Person	8085 m
MT-3000	3000 kg/hr	600 KW	80,000 Kcal	20-30 m3/hr	12-16 Person	100810 m
MT-4000	4000 kg/hr	800 KW	100,000 Kcal	30-40 m3/hr	15-20 Person	1351010 m
MT-5000	5000 kg/hr	1000 KW	120,000 Kcal	40-50 m3/hr	15-20 Person	1351010 m

High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine

Bale Opener Machine

With 4 roller cylinder to feeding the bottles equal.

Machine chamber made by solid strong steel.
Motor speed adjust by inverter.
Machine fixed with support over the conveyor.

Trommel Machine

Loose pet bottle and remove caps, sand, soil and feeding the bottles out constantly.

Motor speed adjust by inverter.
The track and gear made by one unit steel with forging steel strong and heating treatment.
With high platform with dirty collecting chute, put the jumbo bags under the Trommel

Label Remover Machine

Dry type.

Used to remove the labels from the bottle and separate label out from bottles.
Label remove effective > 98%.
Blade made by alloyed steel for long time use.
Blade is fixed by screw on the rotor easy to adjustable and changeable, maintenance.

Crusher Machine

With water inlet do wet crushing.

The rotary and fixed blades fixed by screw inside the crusher are more wider and durable.
Crusher hopper is open by screw motor which save manpower.

Bearing house is installed outside of the crusher chamber so no dirty goes inside.

Hot Washing Tank

Floating Washing Tank

With hot water washing to remove oil/glue and other dirt from the flakes.

Heating method: by Steam or Electricity.
The tank made with insulation layer to save energy.

With the top rollers automatic take out the caps/rings and other impurities, flakes sinking down and take out by bottom screw.

With the rollers working will use less water to take out the caps/rings.
The machine made by SUS 304.
Using More Washing Tank in recycling line , more clean bottle flake

Company Profile

High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine

Customized Solution

We can provide customized recycling solutions according to different customer requirements.

To recommend a suitable solution, please tell us:

What material do you want to recycle?
What is the material size?
Is the material clean or dirty?
What capacity do you need per hour?
What is your final product requirement?
Do you need a complete washing line or single machine?

According to your information, we can design a suitable process flow and machine configuration.

Why Choose Us

Complete plastic recycling solution
Customized machine configuration
Practical process design
Stable machine performance
Suitable for different plastic materials
Factory layout support
Installation and operation guidance
Timely after-sales service

Our company is one of the national high-tech enterprises, we have obtained many national invention patents, and has our registered
trademark and also the CE, SGS, ISO certification for our plastic recycling machines.

Contact Us

If you are interested in this plastic recycling washing line, please contact us.

Please send us your raw material photos, required capacity and final product requirement.
We will recommend a suitable machine configuration and quotation for you.

Contact us now to get a customized plastic recycling solution.
